(286.82 лв.)
Search String:

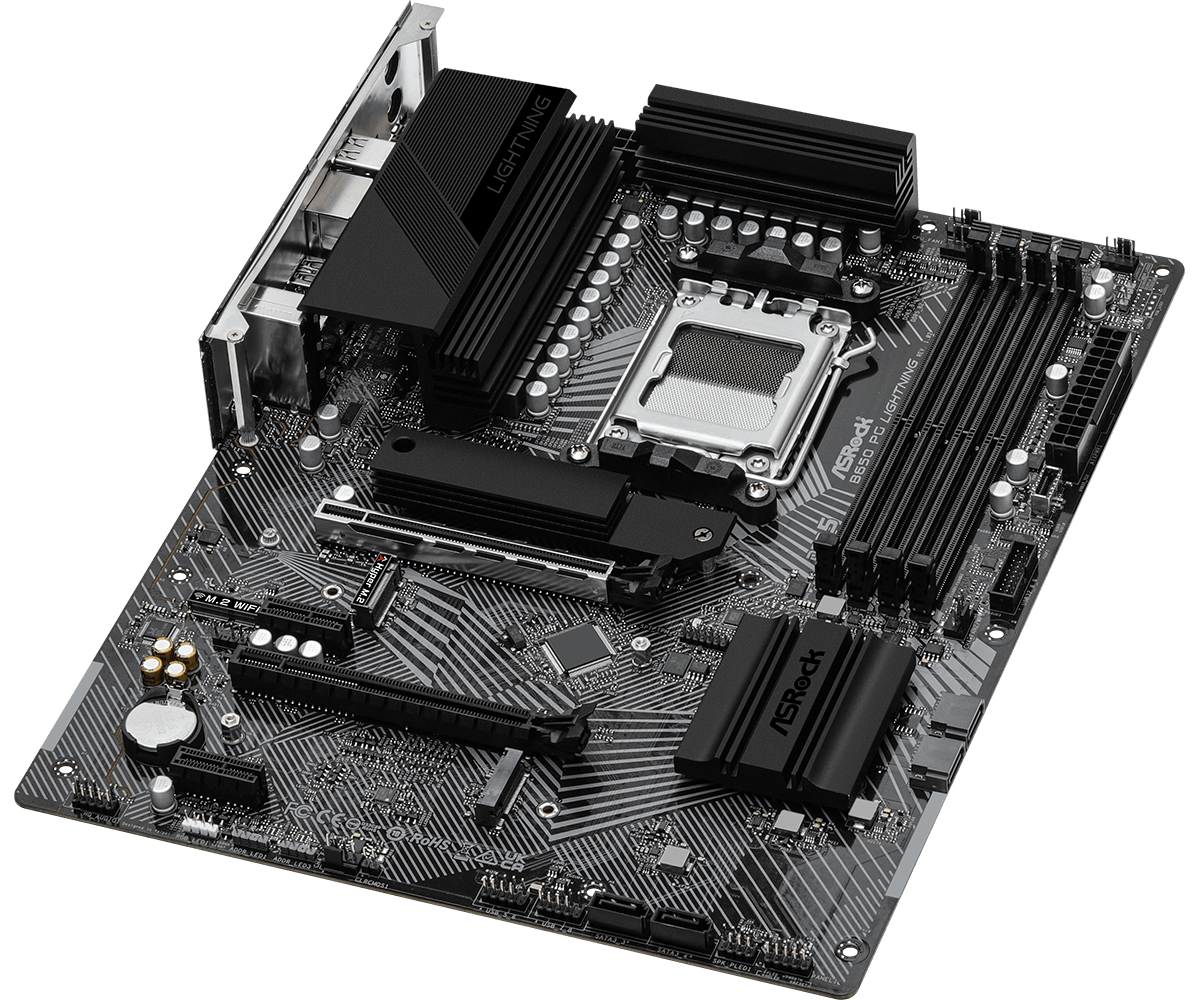

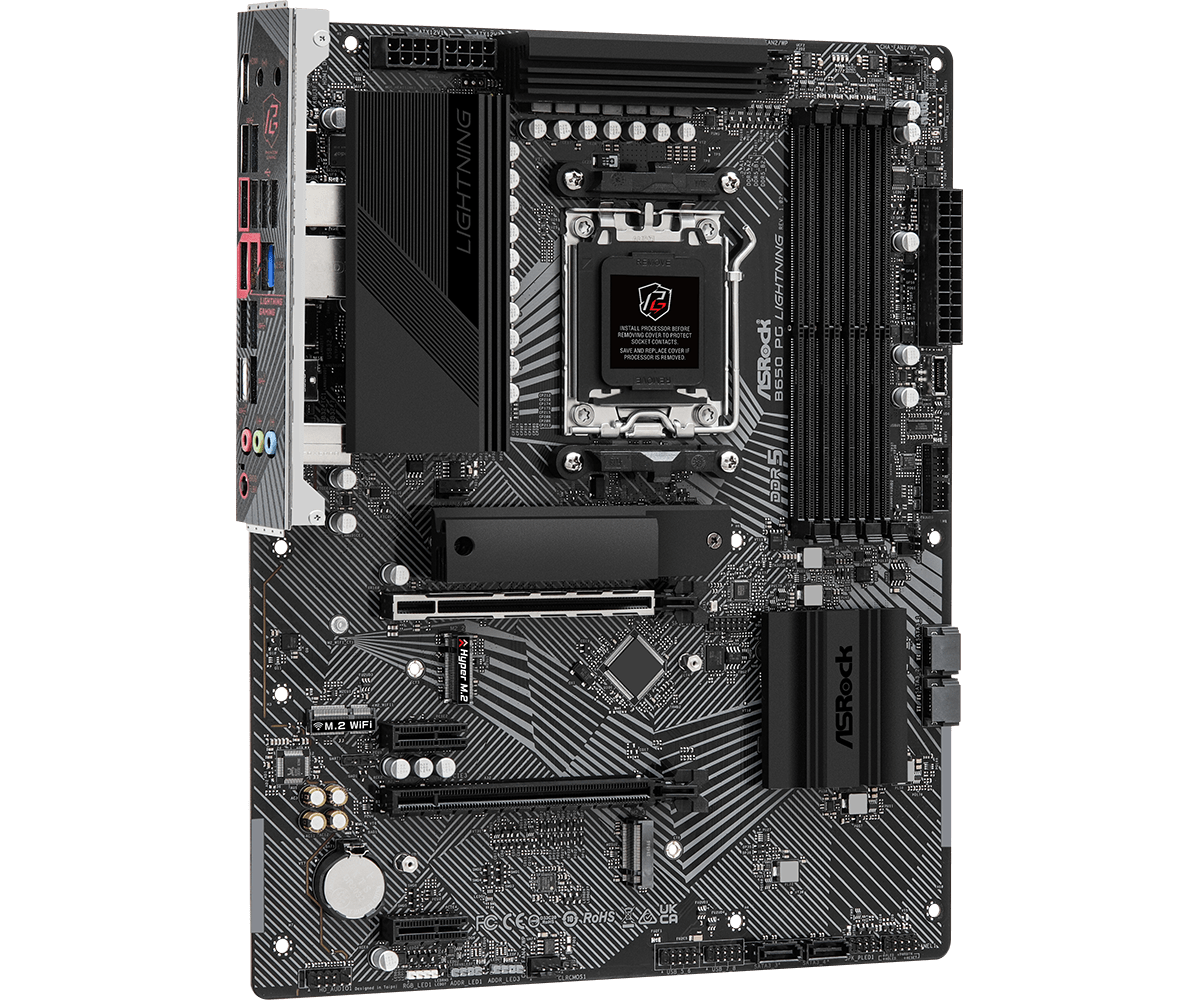

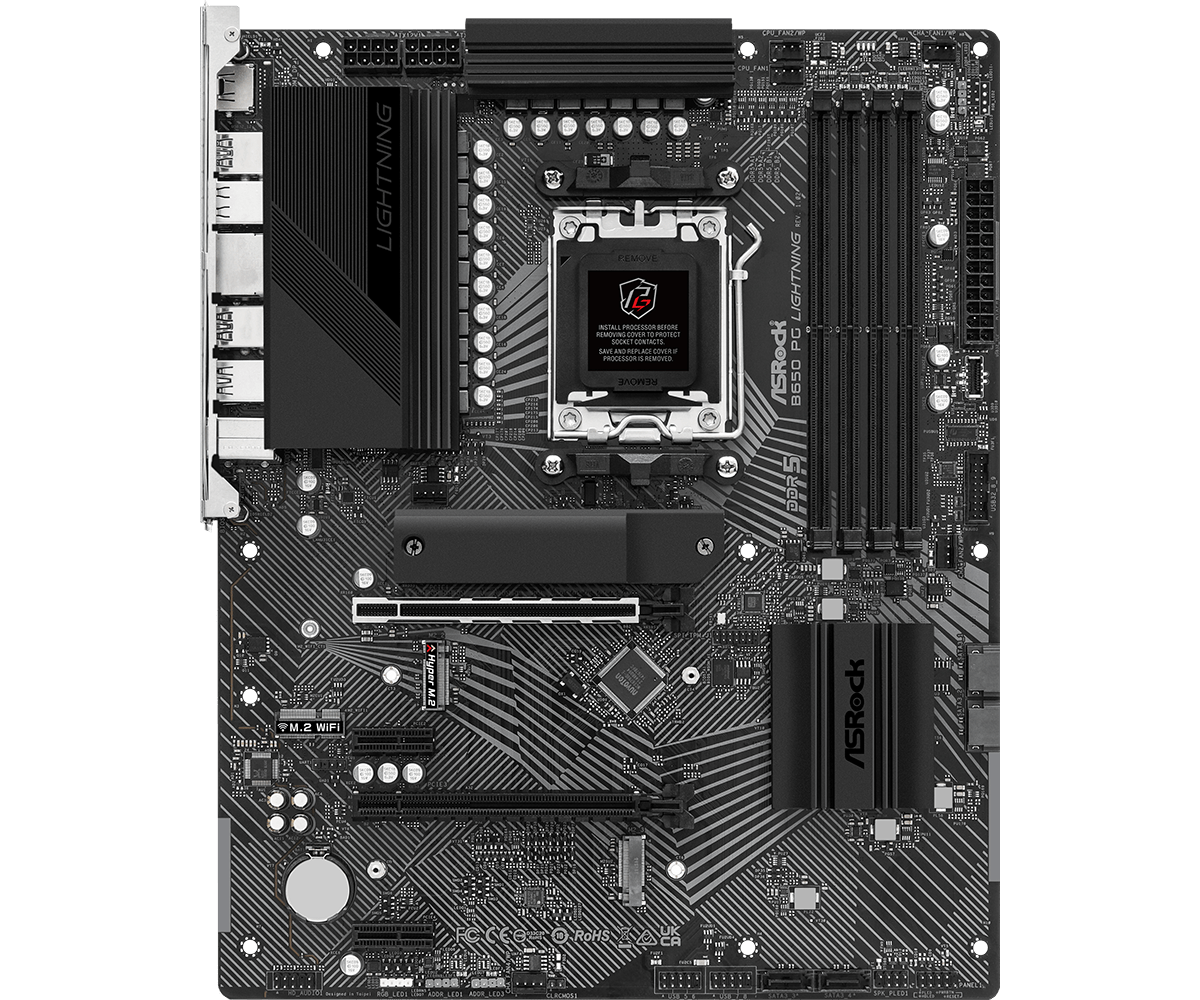

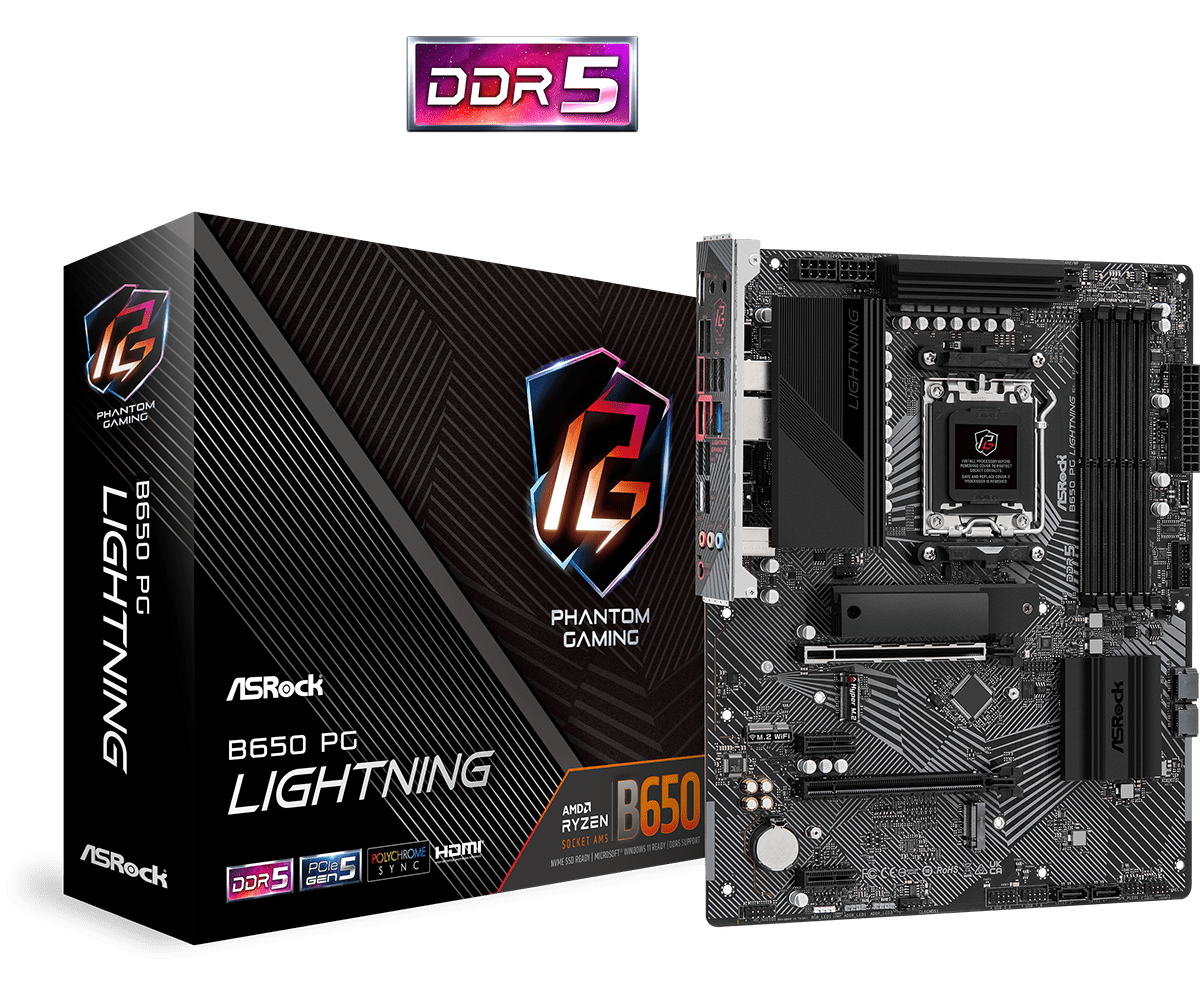

ASROCK B650 4xDDR5 4xSATA3 RAID HDMI 3xM2 GLAN 2xPCIEx16 2xPCIEx1
| Name | Meaning |
|---|---|
| ASROCK | Manufacturer / Производител - ASROCK |
| B650 | Chipset / Чипсет - AMD B650 |
| 4xDDR5 | Number of DDR5 ram slots / Брой слотове за памет DDR5 - 4 |
| 4xSATA3 | Number of SATA3 ports / Брой SATA3 портове за диск - 4 |
| RAID | RAID Supported / Поддържа RAID |
| HDMI | HDMI port / Наличие на HDMI изход |
| 3xM2 | 3 x M.2 Slots / 3 броя M.2 слотове |
| 2xPCIEx16 | 2 x PCI Express x16 slot / 2 броя PCI Express x16 слот |
| 2xPCIEx1 | 2 x PCI Express x1 slot / 2 броя PCI Express x1 слот |
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- AMD B650
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*; - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15? Gold Contact in VGA PCIe Slot (PCIE1)
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*; - Max. capacity of system memory: 128GB*; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver); - 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub); - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Phantom Gaming LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
- 256Mb AMI UEFI Legal BIOS with GUI support
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; - 8 Layer PCB
- Microsoft® Windows® 10 64-bit / 11 64-bit
36 Months
