(197.52 лв.)
Search String:
ASUS B660 4xDDR4 4xSATA3 HDMI DP VGA 3xM2 GLAN 2xPCIEx16 2xPCIEx1
| Name | Meaning |
|---|---|
| ASUS | Manufacturer / Производител - ASUS |
| B660 | Chipset / Чипсет - Intel B660 |
| 4xDDR4 | Number of DDR4 ram slots / Брой слотове за памет DDR4 - 4 |
| 4xSATA3 | Number of SATA3 ports / Брой SATA3 портове за диск - 4 |
| HDMI | HDMI port / Наличие на HDMI изход |
| VGA | VGA port / Наличие на VGA(D-SUB) изход |
| DP | Display port / Наличие на Display port изход |
| 3xM2 | 3 x M.2 Slots / 3 броя M.2 слотове |
| 2xPCIEx16 | 2 x PCI Express x16 slot / 2 броя PCI Express x16 слот |
| 2xPCIEx1 | 2 x PCI Express x1 slot / 2 броя PCI Express x1 слот |
1 x DisplayPort**; 1 x D-Sub port; 1 x HDMI® port***
Intel® B660 Chipset
Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® B660 Chipset*; 1 x PCIe 3.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots
Intel® 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel® 12th Gen processors support PCIe 4.0 x4 mode.; Intel® B660 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**; M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports
4 x DIMM, Max. 128GB, DDR4; 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*"; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem

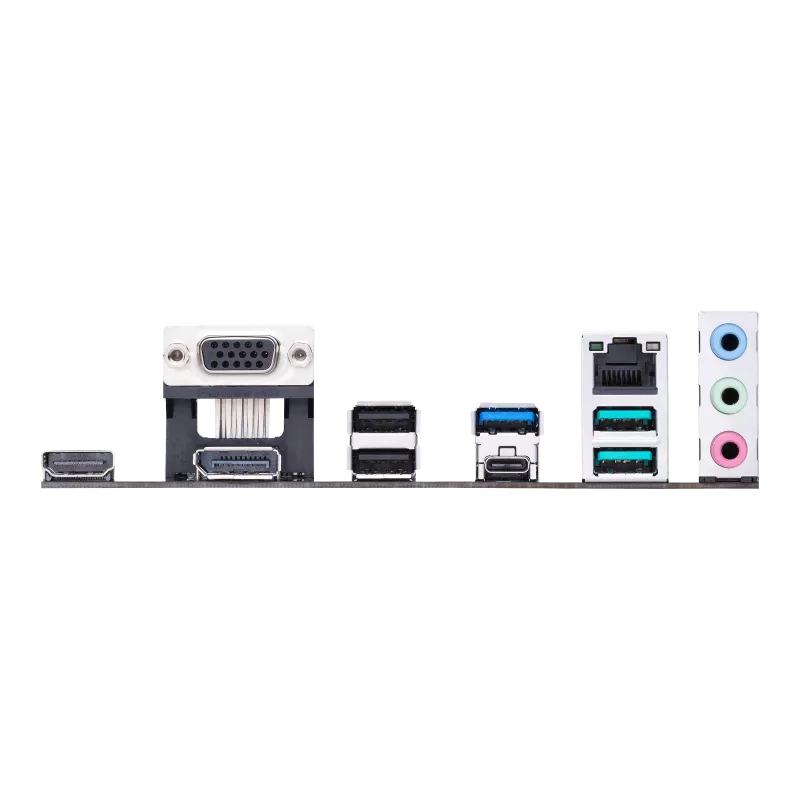

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x D-Sub port; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks
1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ header
Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; - Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Premium audio capacitors; - Dedicated audio PCB layers
ASUS LANGuard
128 Mb Flash ROM, UEFI AMI BIOS
ATX,30.5cm x 24.4cm
Windows® 11, Windows® 10 64-bit
M.2 slot only (Key E, CNVi & PCIe)*
36 Months
