(120.47 лв.)
Search String:
MSI A520 2xDDR4 4xSATA3 RAID HDMI DVI VGA 1xM2 GLAN 1xPCIEx16 2xPCIEx1
| Name | Meaning |
|---|---|
| MSI | Manufacturer / Производител - MSI |
| A520 | Chipset / Чипсет - AMD A520 |
| 2xDDR4 | Number of DDR4 ram slots / Брой слотове за памет DDR4 - 2 |
| 4xSATA3 | Number of SATA3 ports / Брой SATA3 портове за диск - 4 |
| RAID | RAID Supported / Поддържа RAID |
| HDMI | HDMI port / Наличие на HDMI изход |
| VGA | VGA port / Наличие на VGA(D-SUB) изход |
| DVI | DVI port / Наличие на DVI изход |
| 1xM2 | 1 x M.2 Slots / 1 брой M.2 слот |
| 1xPCIEx16 | 1 x PCI Express x16 slot / 1 брой PCI Express x16 слот |
| 2xPCIEx1 | 2 x PCI Express x1 slot / 2 броя PCI Express x1 слот |
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2; 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz1 2; Support HDCP 1.4 & 2.3; 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz1; Maximum shared memory of 16GB
AMD A520 Chipset
1x PCIe 3.0 x16 slot (From AMD processor)1; Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors; Supports x8 speed with Ryzen™ 3000G processors; Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors; 2x PCIe 3.0 x1 slots
AMD A520 Chipset; 4x SATA 6Gb/s ports; 1x M.2 slot (From AMD processor, Key M); Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors; Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors; Supports 2242/ 2260/ 2280 storage devices
2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

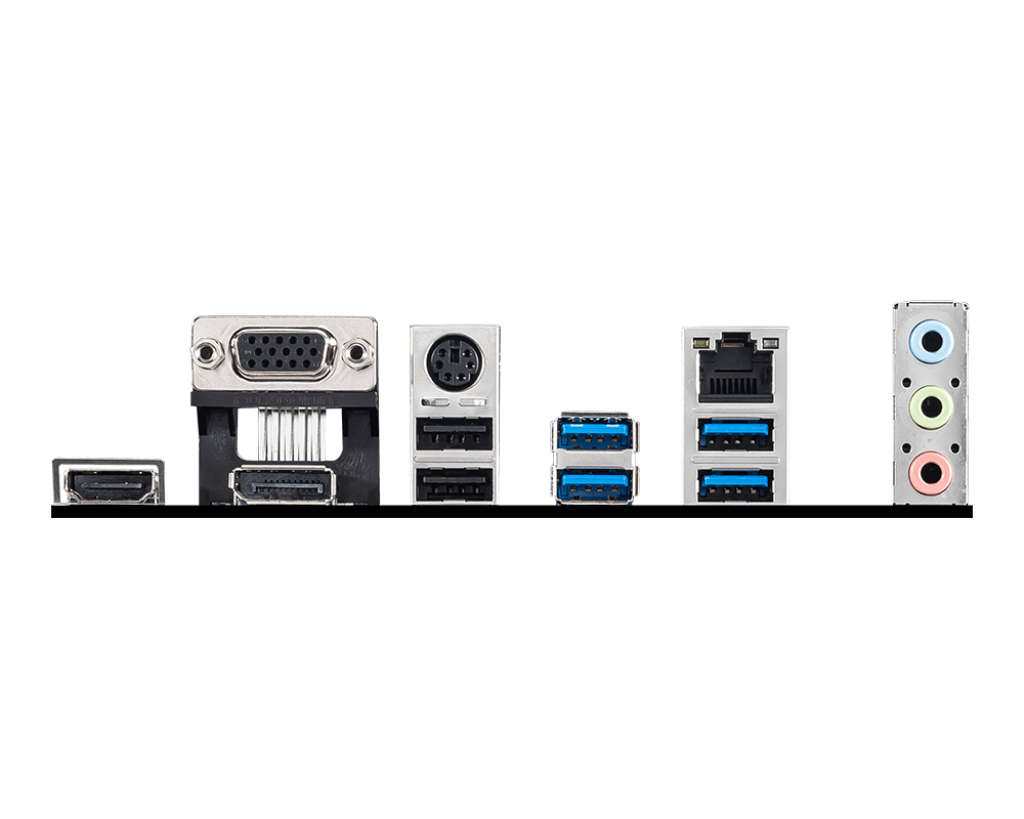

VGA; Keyboard / Mouse; LAN port; HDMI™; DisplayPort; USB 2.0 Ports; USB 3.2 Gen 1 5Gbps Type-A; USB 3.2 Gen 1 5Gbps Type-A; Audio Connectors
1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x Serial port connector; 1x M.2 slot (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connector; 1x 3-pin RAINBOW LED connector; 1x TPM module connector; 1x Clear CMOS jumper
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio
1x Realtek® RTL8111H LAN controller
M-ATX Form Factor; 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
36 Months
