1 x DisplayPort; 1 x HDMI™ port

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®

Intel® B760 Chipset

Intel®Core™Processors (14th& 13th& 12th Gen); 1 x PCIe 5.0 x16 slot; Intel®B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel®Core™Processors (14th& 13th& 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode); Intel®B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory; Dual channel memory architecture; Supports Intel® Extreme Memory Profile (XMP); ASUS Enhanced Memory Profile II (AEMP II)

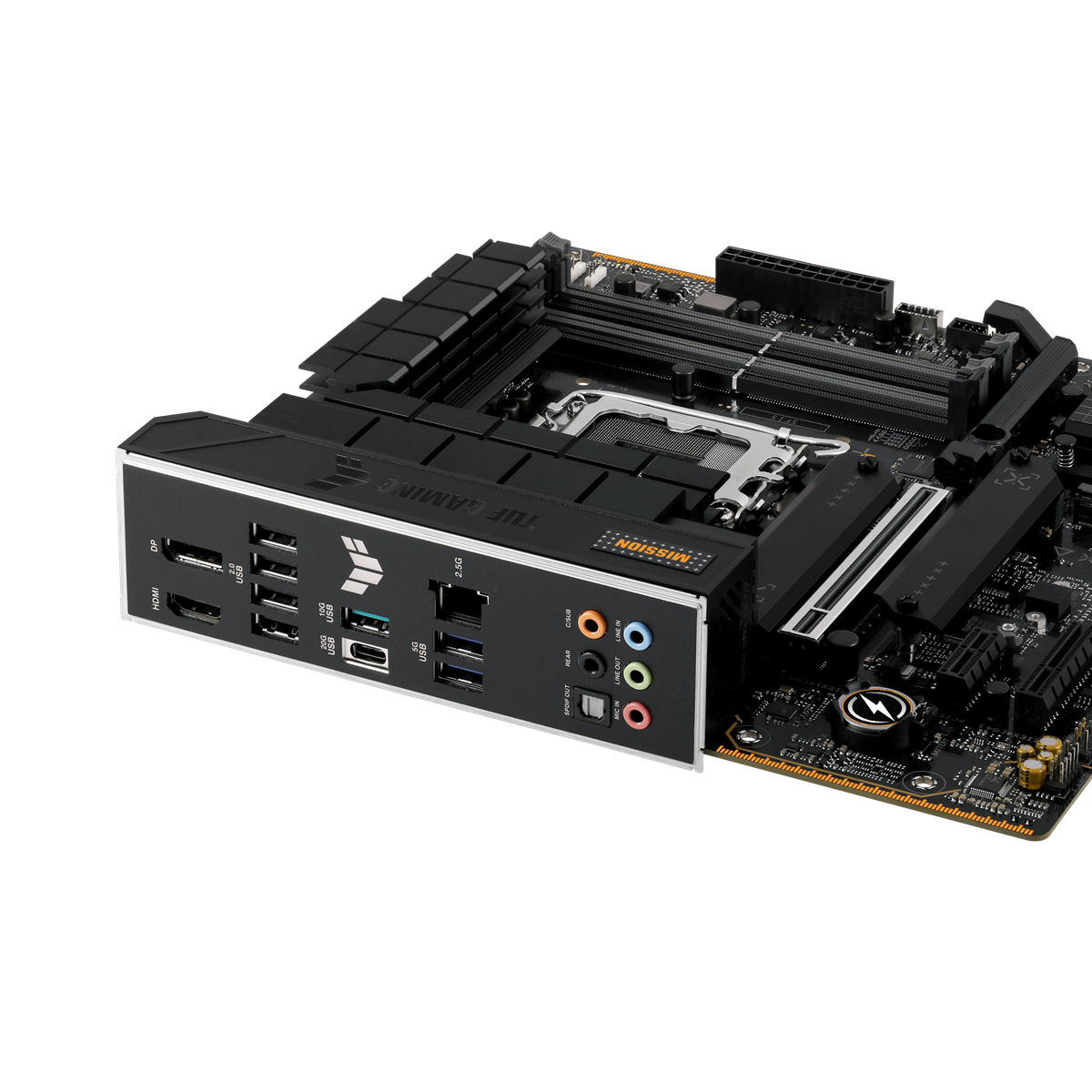

Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port

Fan and Cooling Related; 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; Power Related; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; Storage Related; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; USB; 1 x USB 10Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 3 x USB 2.0 headers support 5 additional USB 2.0 ports; Miscellaneous; 3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x Front Panel Audio header (F-AUDIO); 1 x20-3 pin System Panel header with chassis intrusion function; 1 x Thunderbolt™ (USB4®) header

Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming,; Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers

1 x Realtek 2.5Gb Ethernet, TUF LANGuard

128 Mb Flash ROM, UEFI AMI BIOS

micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Windows®11, Windows®10 64-bit

36 Months
